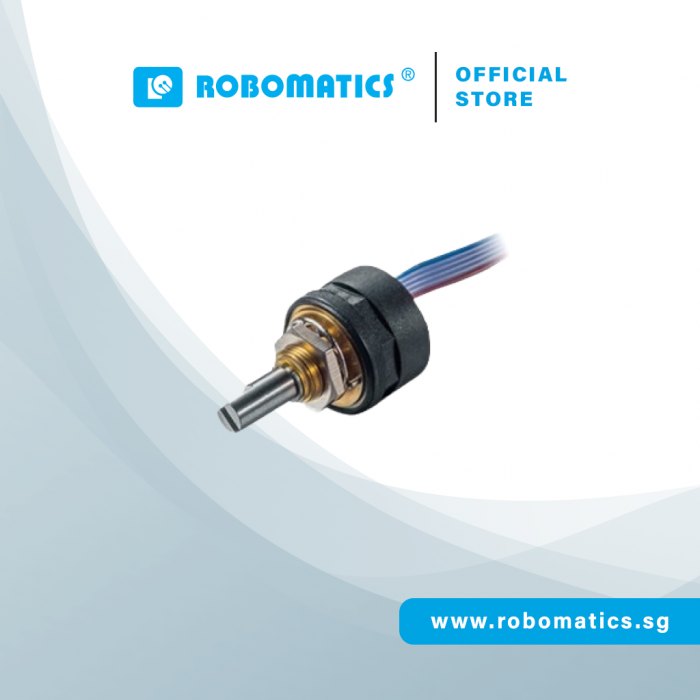

CM26M-11-72000.AA

BRAND: HOHNER AUTOMATION

ABSOLUTE MULTITURN MAGNETIC ENCODER

• Mechanically 100% interchangeable with available potentiometers in the market
• System contactless Hall effect which guarantees over 25 million turns of life
• Programmable up to 200 turns
• Programmed 20 turns
• External diameter 22 mm
• Resolution of 12 bits
• Analog output 0…5V
• Easily programmable output range from 10º to 72.000º (200 turns)

The CM26M series enables easy, flexible and perfect adjustment of start and end points of the analog output signal and the sense of rotation direction by the user. Previous assembly and installation reading “Programming Manual CM26M” is recommended. The programming cycle counter is stored in nonvolatile memory so that it can reach up to 10,000 cycles of the encoder’s configuration. During the disconnection of the encoder, the shaft can be rotated ± 179 ° without losing the value of the absolute position.

DATASHEET: https://cloudstorage.unifi.com.my/s/bD93Qmwg4X75B97
