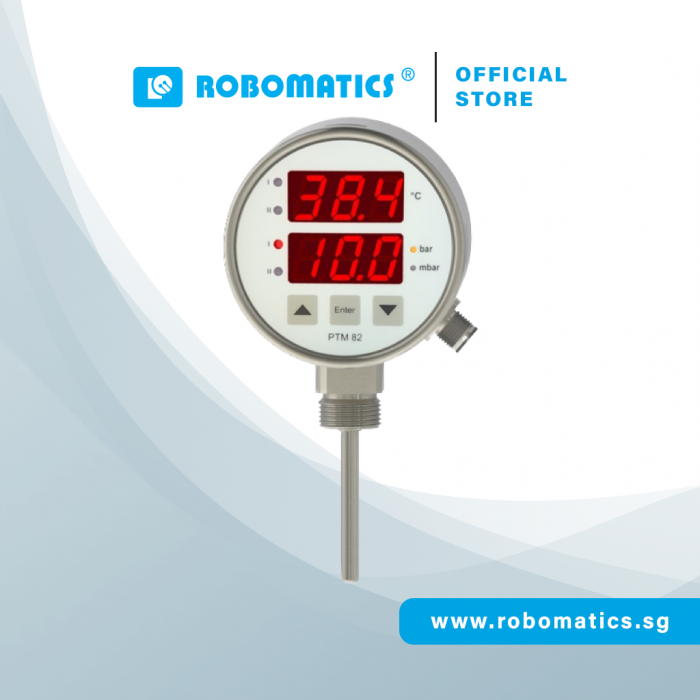

Digital Pressure Gauge PTM82
BRAND: NOEDING-MESSTECHNIK
PTM82 Pressure
• Combines pressure and temperature measurement with a large, bright display.
• Digital contact gauge allows quick assessment of process parameters.
• Offers analog output and two switch outputs.
• Capacitive measuring principle and ceramic membrane resist aggressive media.
• Process connection made of high-quality stainless steel 1.4404.
• All weted components are food safe, ideal for beverage and process water applications.
Measuring range: 50 mbar to 60 bar / -20 to 100 °C
Output: 4...20 mA, 0...20 mA, 0...10 V, PNP switch output
Medium temperature: -20...100 °C
Accuracy: 0,5%
DATASHEET: https://cloudstorage.unifi.com.my/s/N75qKCpsaEH5omL
