PAGU-FLEX GFP 10 06/06

BRAND: HOHNER AUTOMATION

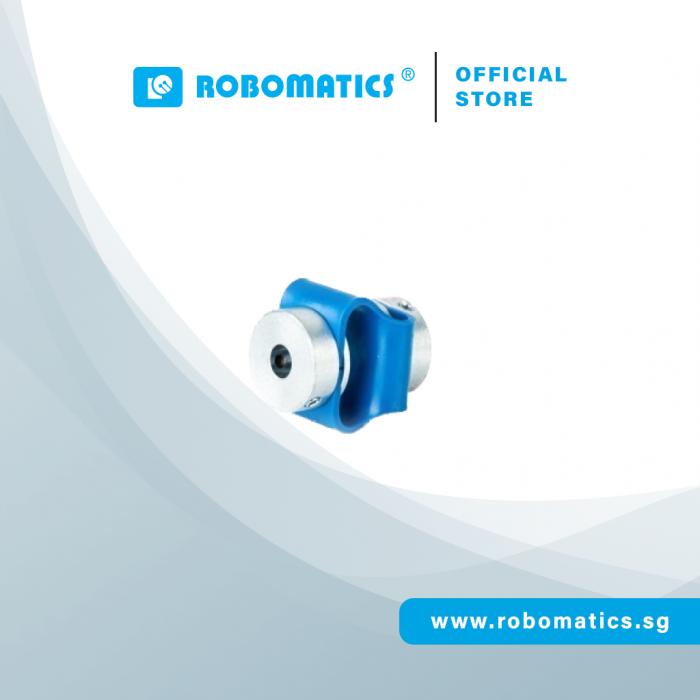

FLEXIBLE ISOLATING COUPLING PAGU-FLEX GFP 10 06/06

• High precision for positioning applications
• Without wear or fatigue
• Vibration absorption
• Good torsional elasticity

Adjuntes to a great variety of uses, the PAGU-FLEX couplings have been designed flexibly in accordance with the existing agreements for the shaft, as well as with the different requirements of the specific application cases.

In the standard versions, each one of the galvanised heads (C15K material) has a cylindrical hole (H7 tolerance) and is fixed to the shaft through a stay bolt with a hexagonal head DIN 916.

The internal heads are very useful in situations with little space or reduced access.

DATASHEET: https://cloudstorage.unifi.com.my/s/jx5eTkXdsmKbjBg

-> Feel free to click on WhatsApp for more details and explore different application scenarios!
